Bondtech PTFE Fittings Set for Prusa Mini 3D Printer - High-Quality Tubing Connectors & Couplers for Smooth Filament Feeding | Perfect for DIY 3D Printing & Home Workshop Use
$12.37
$22.5
-45% OFF
Free shipping on all orders over $50
7-15 days international
27 people viewing this product right now!
30-day free returns
Secure checkout
64680242
Guranteed safe checkout
Description
Use this set to simplify how to install, use and maintain Prusa Mini’s bowden tube.
In stead of using 3 PTFE tube sections, use one only.
Includes push-fit collets for ease of use and effective hold of the tube.
Pipe fittings are machined in Brass by Bondtech

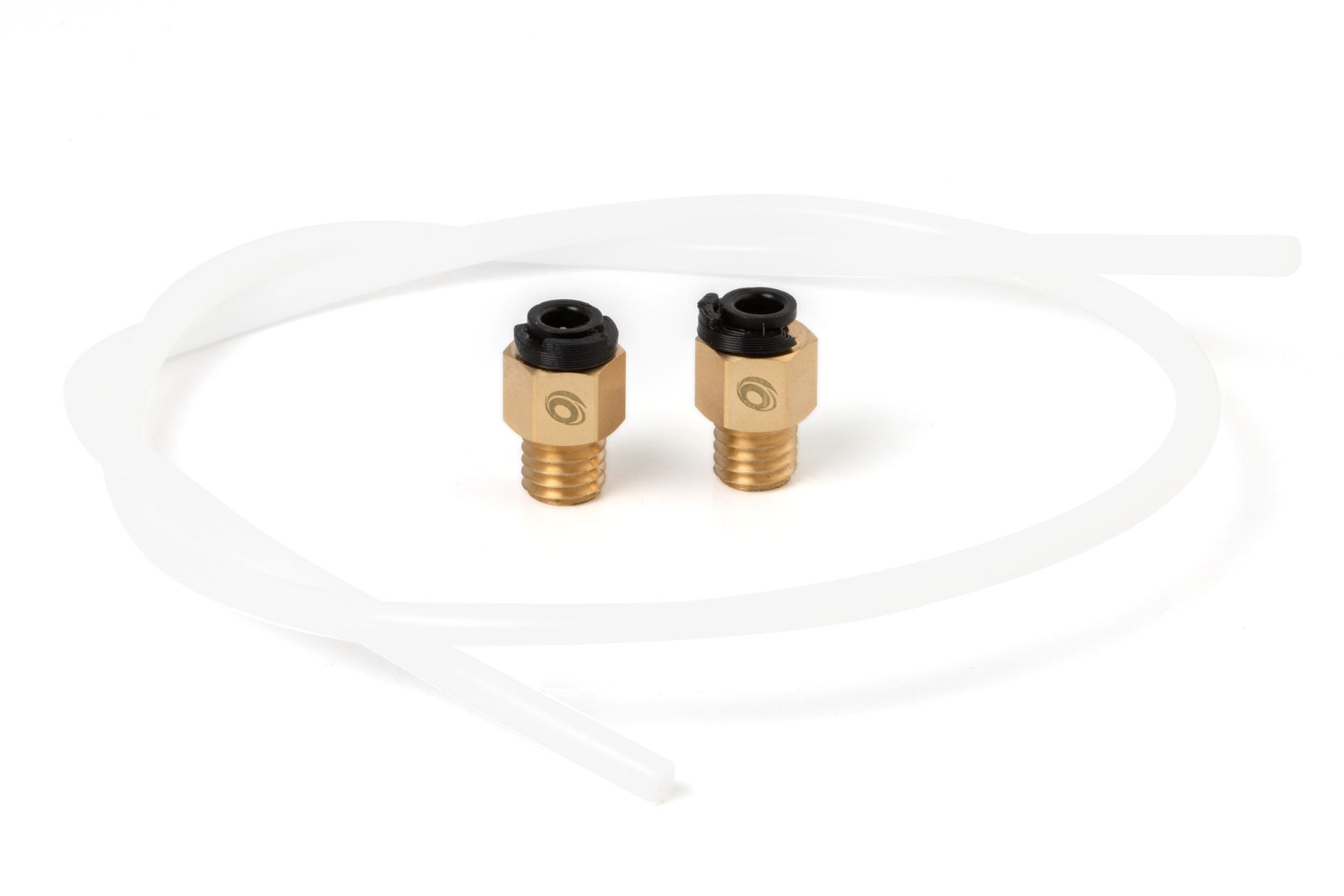

Product includes:
- 2x Bowden Fitting for Prusa Mini
- 2x Push-fit collet 4mm
- 2x Bowden clip 1.75
- 1x 360mm long chamfered PTFE Tube 2/4 mm
Setup Guide
Required for the setup:
- Bondtech PTFE fittings set for Prusa Mini
- 8mm Wrench / Spanner (included with the mini)
- Permanent marker (optional)
1: Heat up, Unload filament, cooldown.
2: Unscrew nut on extruder, unscrew nut on Hotend, remove long PTFE tube.
3: Remove stock pipe fitting in hotend and extruder.
4: Remove stock PTFE tube in hotend and extruder.
5: (optional) : Use removed PTFE tubes and a marker to make a validation marking for PTFE tube insert depth, to make sure it seats all the way down.
6: Install bowden fittings in the extruder and hotend.
7: Insert PTFE tube into the extruder, push all the way down, Insert Bowden clip.
8: Insert PTFE tube into the hotend side pipe fitting, push all the way down, Insert Bowden clip.
Done!
