Bondtech DDX PH4 Direct Drive Extruder with HeatLink 300°C High-Temp Thermistor - Perfect for 3D Printing ABS, PETG & Nylon Filaments

To use this product, add to cart the correct Heatlink Interface Cable to connect this thermistor to your printer. Check the compatibility table below.

Bondtech HeatLink 300°C Thermistor

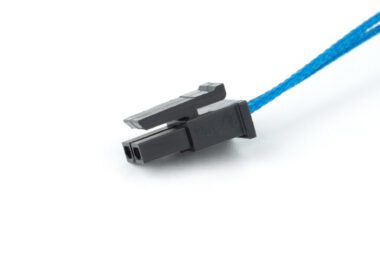

This 300C thermistor based on the SeMitec 104NT-4-R025H42G temperature sensor and uses a Molex micro-fit 3.0 female connector to enable extending it with one of the HeatLink interface cables and connect to your printer without hassle.

Use the following code to customize your Marlin2.0 to use this thermistor:
#define TEMP_SENSOR_0 5

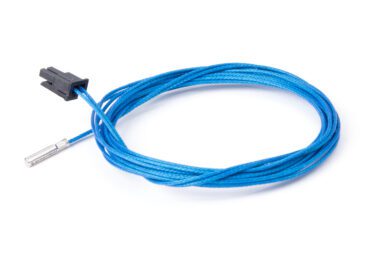

• 1.5m leads with blue sleeves and Molex micro-fit 3.0 female connector;

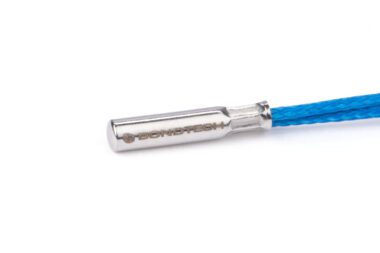

• Ø 3mm Stainless Steel crimped cartridge with laser engraved Bondtech logo;

• SeMitec 104NT-4 temperature sensor.

What is Heatlink?

The HeatLink range is an alternative group of thermistors and heater cables enabled with Molex micro-fit connectors, complemented by several short interface cables for connecting to dozens of 3D printer models to bring ease of use to their owners.

HeatLink is the answer to the growing demand for powerful heaters and high temperature thermistors that are ready to use and easy to install.

Pair a Bondtech thermistor or heater with a HeatLink interface cable to plug into any printer without soldering or crimping.

Each Interface Cable is 50mm long and will fit entirely inside the control box.

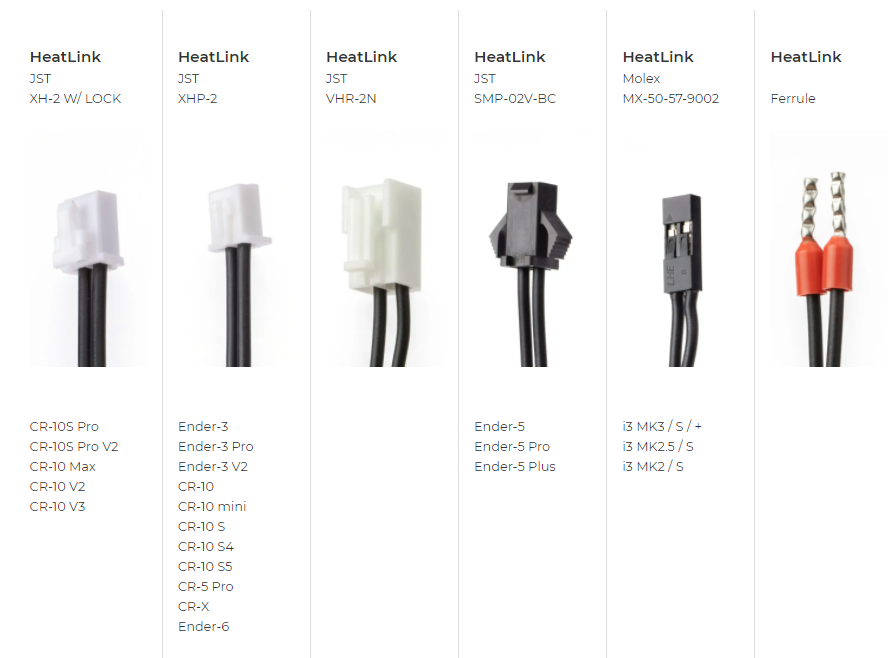

Choose the heatlink right for your printer

The table above refers to connecting Bondtech HeatLink Thermistors only.
