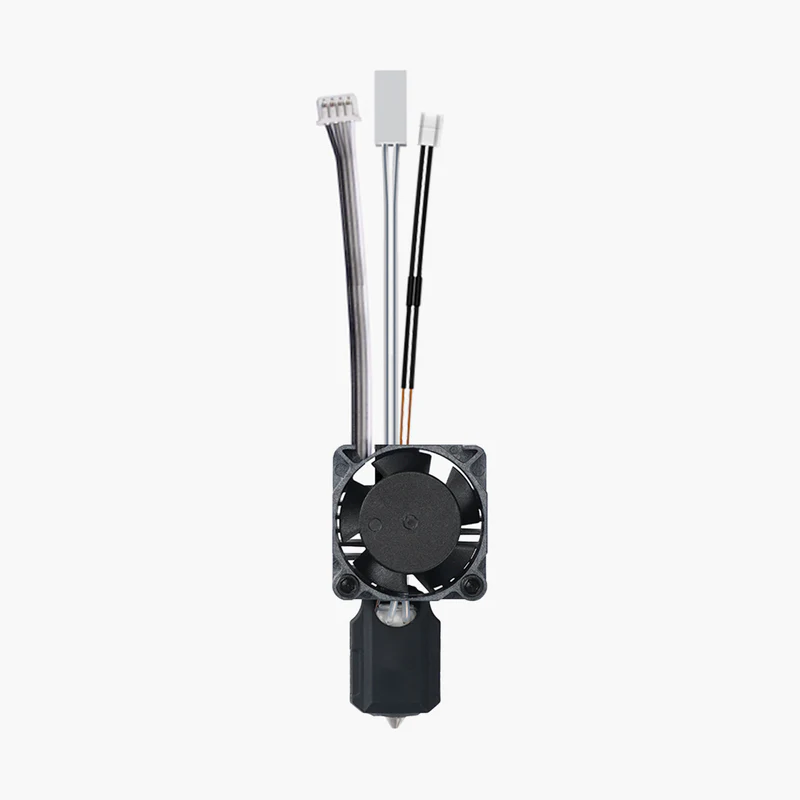

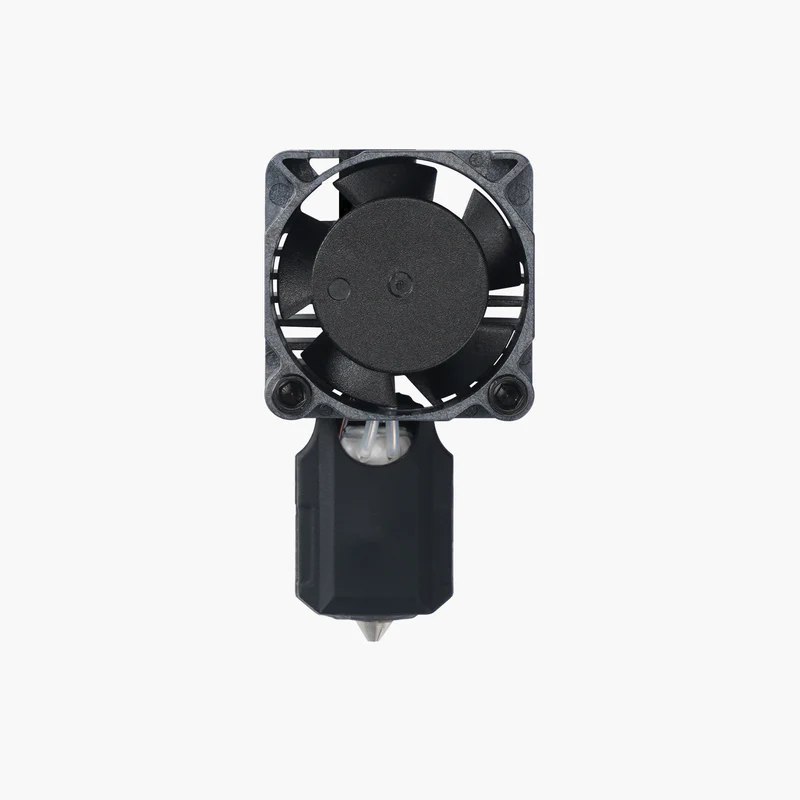

Bambu Lab X1 Series Complete Hotend Assembly with Hardened & Stainless Steel Nozzle (0.4mm/0.6mm/0.8mm) - High-Performance 3D Printer Replacement Part for ABS, PETG, PLA Printing

Compatibility

X1 and X1C

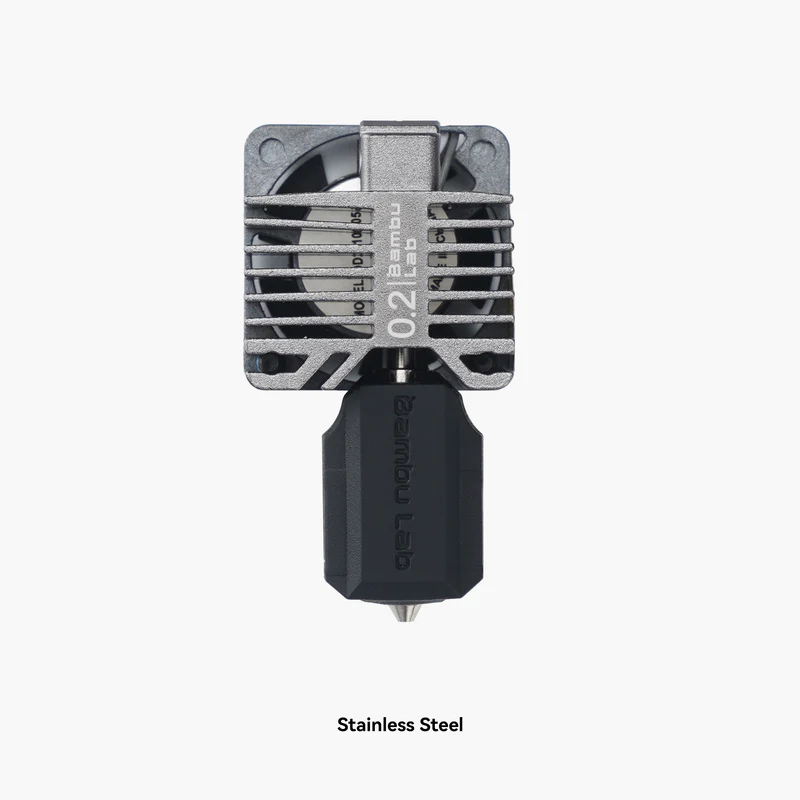

0.2mm Nozzle
Optimal Print Fineness

• Extremely small layer gaps
• More detailed on the vertical print surface
• Smaller diameter extrudes thin filaments
• High resolution on the horizontal print surface

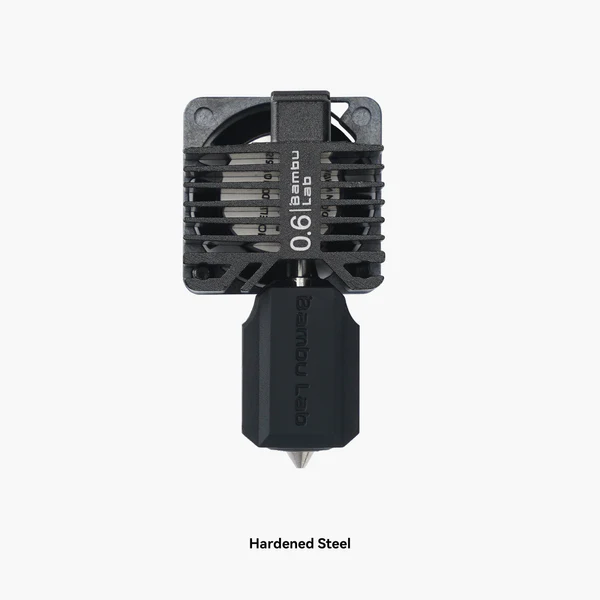

0.6mm and 0.8mm Nozzle
Faster Print Speed

Larger diameter extrudes more filaments per second, resulting in faster print speed

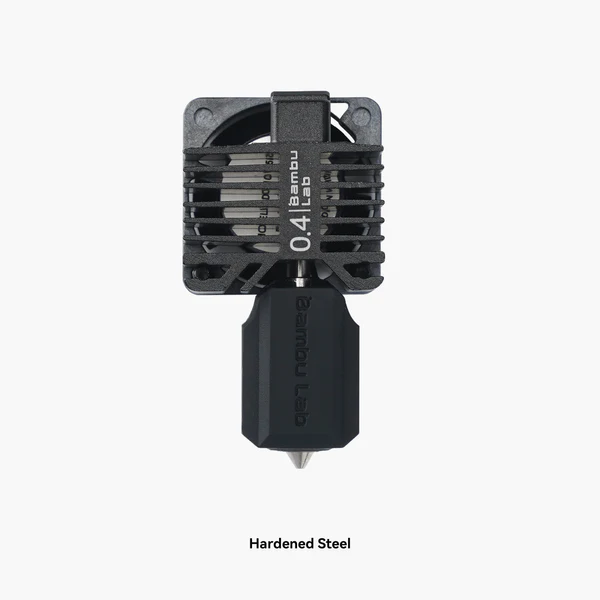

0.4mm nozzle

This is widely recognized as the standard nozzle diameter for modern 3D printers due to its optimal balance between print quality and print speed. This nozzle size is utilized in both the Bambu Lab X1 Series and P1 Series 3D printers.

 NOTES:

1. Filaments with carbon fiber, glass fiber, metal, or other inorganic particles are prone to clog a 0.2 mm nozzle.
2. For filaments containing carbon fiber or glass fiber, it is highly recommended to use a hardened steel 0.6 mm nozzle to minimize the risk of clogging and abrasion.
3. Bambu PLA-CF and Bambu PETG-CF have been extensively tested and proven to have a low risk of clogging when printed with a hardened steel 0.4 mm nozzle, while also achieving higher print quality.
