Bondtech IFS Extruder Upgrade Kit for Prusa Mini & Mini+ 3D Printer - High Precision Direct Drive Extruder for Smooth Filament Feeding | Perfect for PLA, ABS, PETG Printing & Miniature 3D Models

New Version WITH IDGA

With new white plastic main gear and integrated drive gear for lower run-out

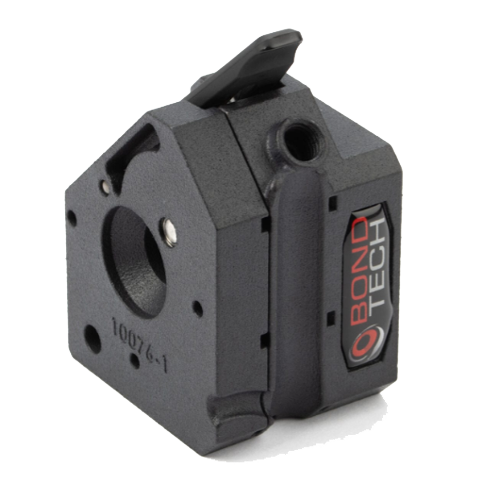

New Bondtech Internal Filament Sensor Extruder for Prusa Mini.

This extruder is an evolution of our previous high-resolution extruder upgrade for the Prusa Mini.

Filament Sensor

The new filament sensor for Prusa Mini/+ may be mounted inside the extruder housing.The IFS Extruder for Prusa Mini may be used without the filament sensor. With a simple process it is easy to later update it to fit the Prusa Filament Sensor inside.

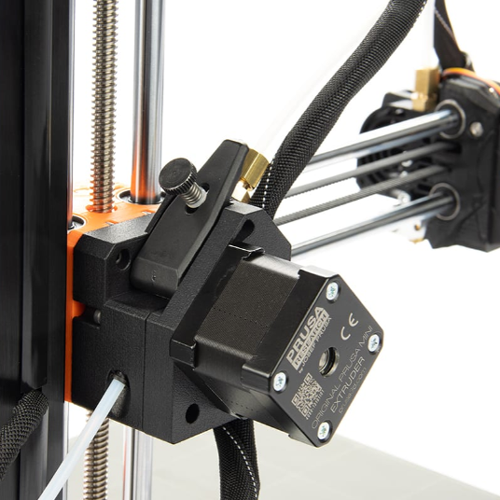

Upgrade Your Prusa Mini or Mini+

Upgrade your Prusa Mini/+ with a Bondtech Dual Drive extruder designed to seamlessly fit the original setup.

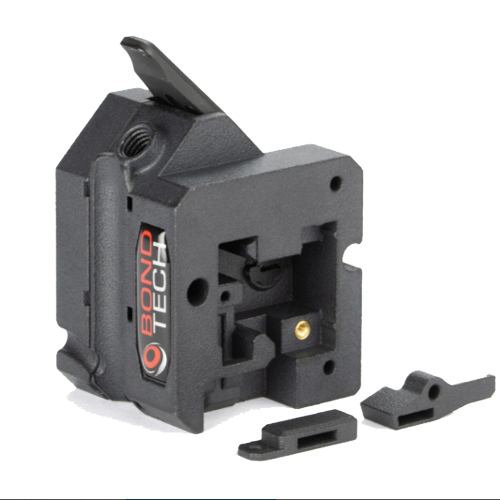

Filament Sensor Compatible

The Bondtech Internal Filament Sensor Extruder for Prusa Mini may embed the new Prusa filament sensor for Mini or Mini+ on its housing.
The extruder may be used with or without the filament sensor.

Hardened Drive Gears

Allows to use abrasive materials that would wear out the gears of your original feeder otherwise.

Adjustable tension

The thumbscrew tensioner allows the user to fine-tune the pressure exerted by the drive gears onto the filament. This gives you the power to adjust according to your preferences and to optimize for the type of material you are using.

More choice of materials

The hardened steel Dual Drive gears allow you to work with common and abrasive materials.

Included in this Kit

• 1x Bondtech IFS extruder for Prusa Mini
• 1x 10076-4 IFS Magnet Holder (PA12)
• 1x 10076-5 IFS Lever (PA12)
• 1x 15112 IFS Extruder Plug (HT-PLA)
• 3x Black nylon zip-ties
• 4x M3x35 black oxide steel screws
• 1x M3x12 black oxide steel screw
• 1x Brass motor gear
• 1x Thumb Screw assembly

Not included in this Kit

• Prusa Filament Sensor
• Filament Sensor Magnets
• Filament Sensor Steel Sphere
