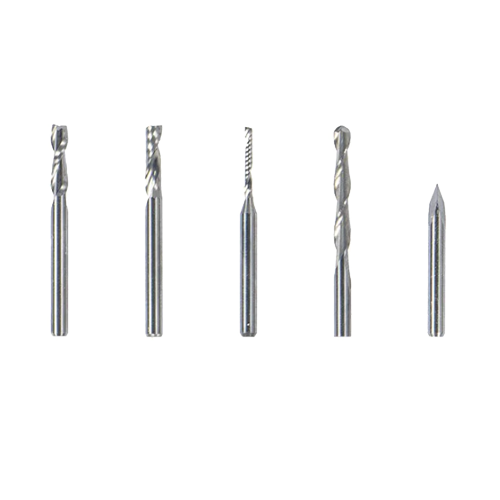

General-purpose End Mill
With a shank diameter of 3.175 mm, the bits in this set are compatible with both Snapmaker Original and Snapmaker 2.0.
UF20 tungsten steel alloy
UF20 tungsten steel alloy with high hardness and wear resistance, providing a long service time.
Flat End Mill
Typically used for roughing operations, cutting 2D shapes and flat-sided 3D shapes.
Ball End Mill
With a round cutting edge, typically used for cutting curvatures and 3D shapes into materials.
Carving V-bit
With a narrow and sharp tip, used for carving intricate, detail-rich patterns.
Flat End Mill (double cut)
Shank Diameter: 3.175 mm / 0.125 "
Total Length: 38 mm / 1.496 "
Flute Length: 12 mm / 0.472 "
Cutting Diameter: 3.175 mm / 0.125 "
Flat End Mill (single cut 3.175)
Shank Diameter: 3.175 mm / 0.125 "
Total Length: 38 mm / 1.496 "
Flute Length: 12 mm / 0.472 "
Cutting Diameter: 3.175 mm / 0.125 "
Flat End Mill (double cut 1.5)
Shank Diameter: 3.175 mm / 0.125 "
Total Length: 38 mm / 1.496 "
Flute Length: 12 mm / 0.472 "
Cutting Diameter: 1.5 mm / 0.059 "
Ball End Mill
Shank Diameter: 3.175 mm / 0.125 "
Total Length: 38 mm / 1.496 "
Flute Length: 17 mm / 0.669 "
Cutting Diameter: 3 mm / 0.117 "
Carving V-bit
Shank Diameter: 3.175 mm / 0.125 "
Total Length: 32 mm / 1.260 "
Angle: 30 °
Tip Diameter: 0.2 mm / 0.008 "
