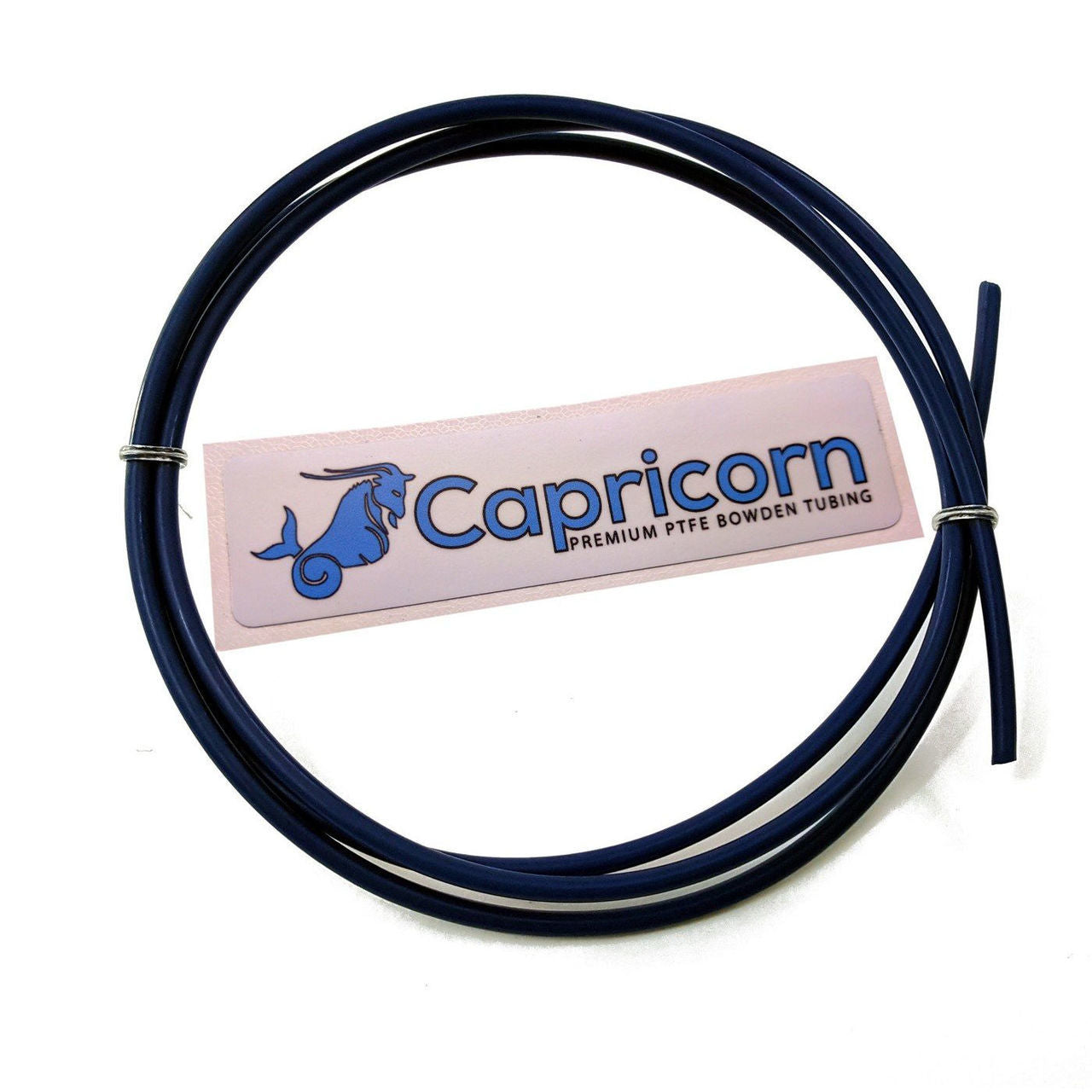

Premium PTFE Bowden Tube for 3D Printers - Capricorn XS Series | High-Temperature Resistance, Low Friction | Ideal for Precision Printing & DIY Projects
$8.52
$15.5
-45% OFF
Free shipping on all orders over $50
7-15 days international
22 people viewing this product right now!
30-day free returns
Secure checkout
82401158
Guranteed safe checkout
Description
Capricorn's flagship PTFE Tubing, enhanced with a proprietary blend of high performance additives. 1.9mm ID, 4mm OD for 1.75mm filaments.
Sold in one (1) meter lengths (e.g 1 piece: 1 meter, 2 pieces = 2 meters)
This is, hands down, the single best PTFE Bowden tubing you can buy for your home 3D printer.
Guaranteed to always be the right diameter, and perfectly round. Print flexible filaments without the binding up that happens with over-diameter tubes.
Price for PTFE tubes are per meter.
Data Sheet
| Our Premium XS Series Dark Blue Tubing | ||
| Additives | Blue Color and Secret High Lubricity Additive Mixture | |
| Best For Chunky Filaments | YES | |
| Best For Flexible Filaments | YES | |
| Can See Through | NO | |
| Pulling Friction | 0.8 | |
| Color | Dark Blue | |
| Density (kg/m3) | 2300 +/-100 | |
| Hardness | 60-65 | |
| Inner Diameter (mm) | 1.90 +/- 0.05 | |
| Linear Thermal Expansion at 250 °C | 2.2-3.3% | |
| Material | Highest Quality Pure Virgin PTFE | |
| Melting Point (°C) | up to 340 | |
| Outer Diameter | 3.95 +/- 0.05 | |
| Roundness (ϵ) | < 0.1 | |
| Stiffness | Medium High | |
| Thermal Conductivity (W/m-k) | 0.25 | |
| Wear Rate (gm/s) | 0.01 | |
| Young's Modulus (GPa) | 0.53 |
| ♠Pulling Friction is calculated as the average force required to pull 1.2 meters of 1.75mm PLA filament through 1 meter of tubing at a constant speed, relative to 1 meter of cheap white reference tubing. Note that although we observed the friction of the TL series to be about the same or even slightly lower than our XS series, it also has a larger internal diameter. |
| §Other Bowden tubes may vary significantly in stiffness, depending on the material from which they're made. Our tubing generally tends to be more flexible than most, with the TL being more flexible than XS. |
| ¥Young's Modulus (YM) is the measure of elasticity of the material. Our XS Series additives give the PTFE a slightly greater YM than the TL Series. |
| ♥Temperatures were approximated by heating samples of all tubing simultaneously, observing how quickly each one began to deform. Printer failures may happen at significantly lower temperatures. |
| Printing high temperature materials may create dangerous off-gassing. Please refer to the |
