Designed To Be Flexible

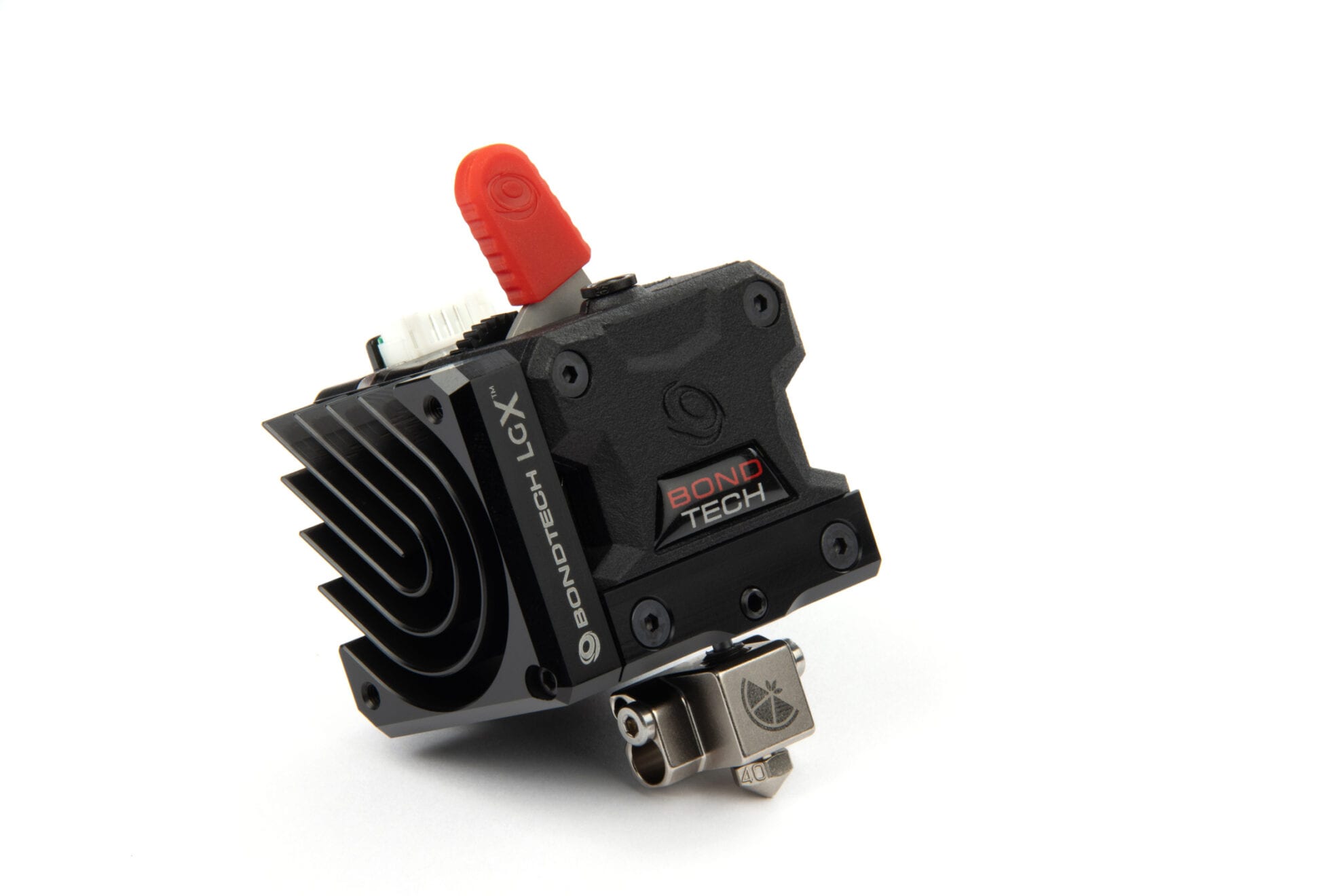

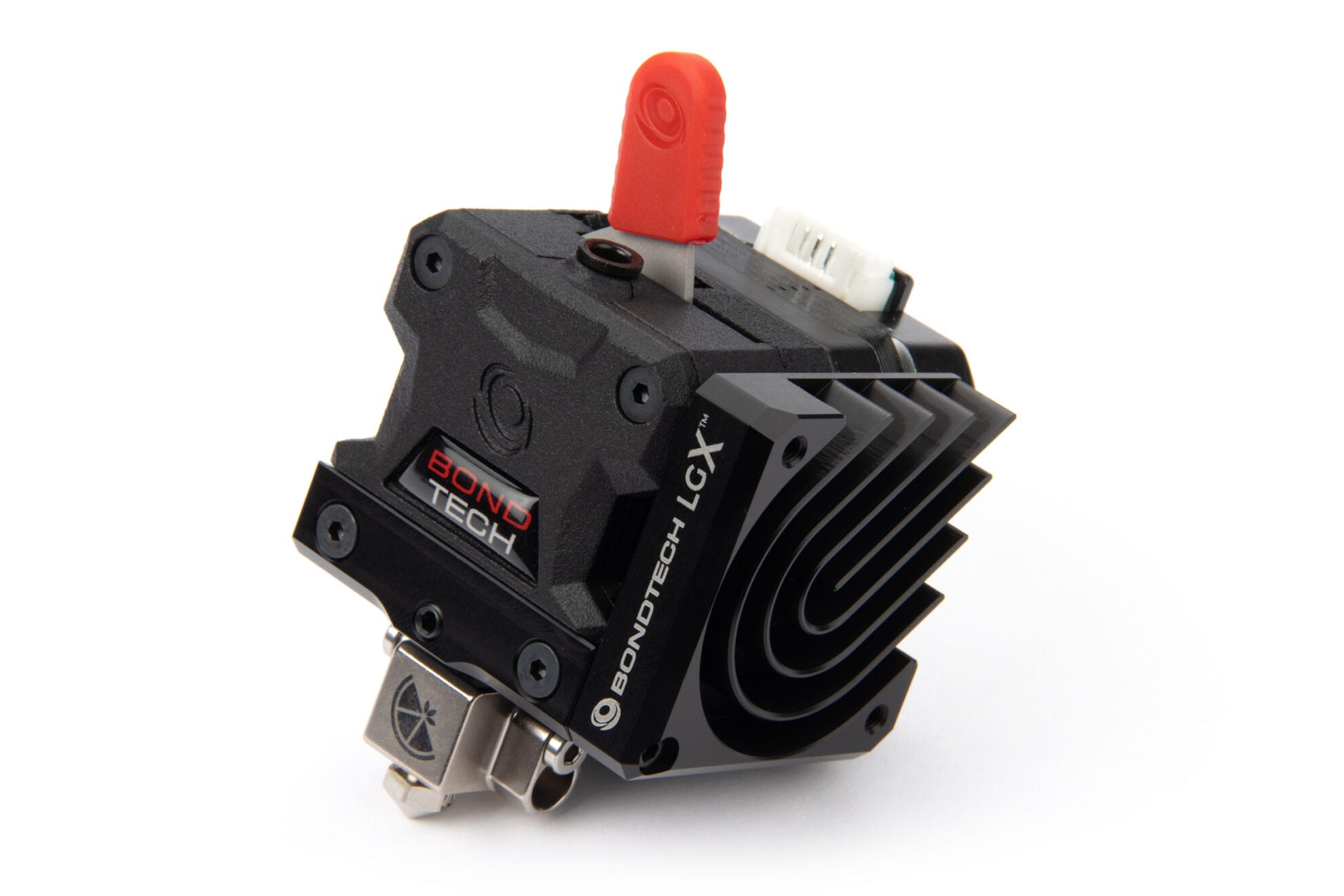

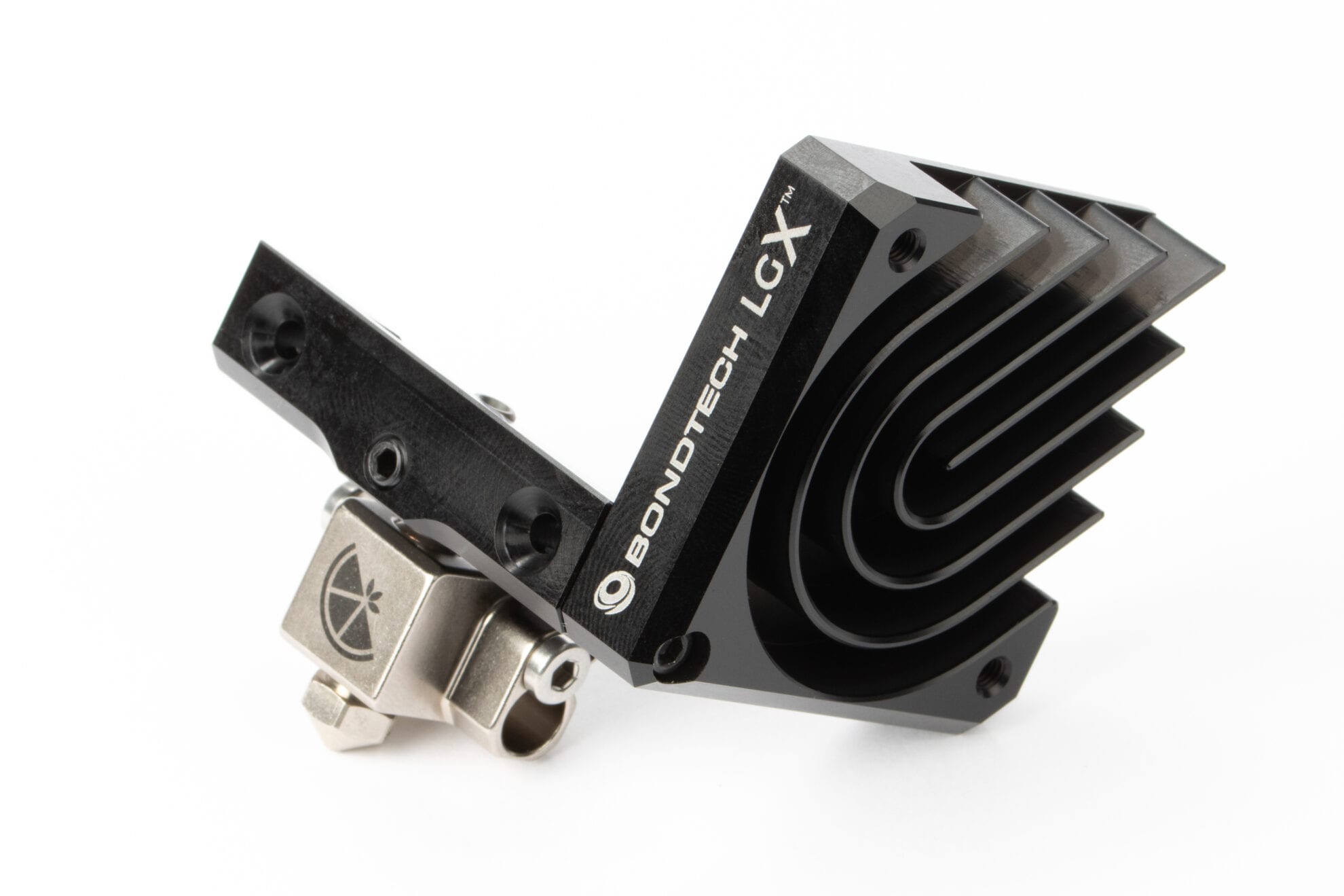

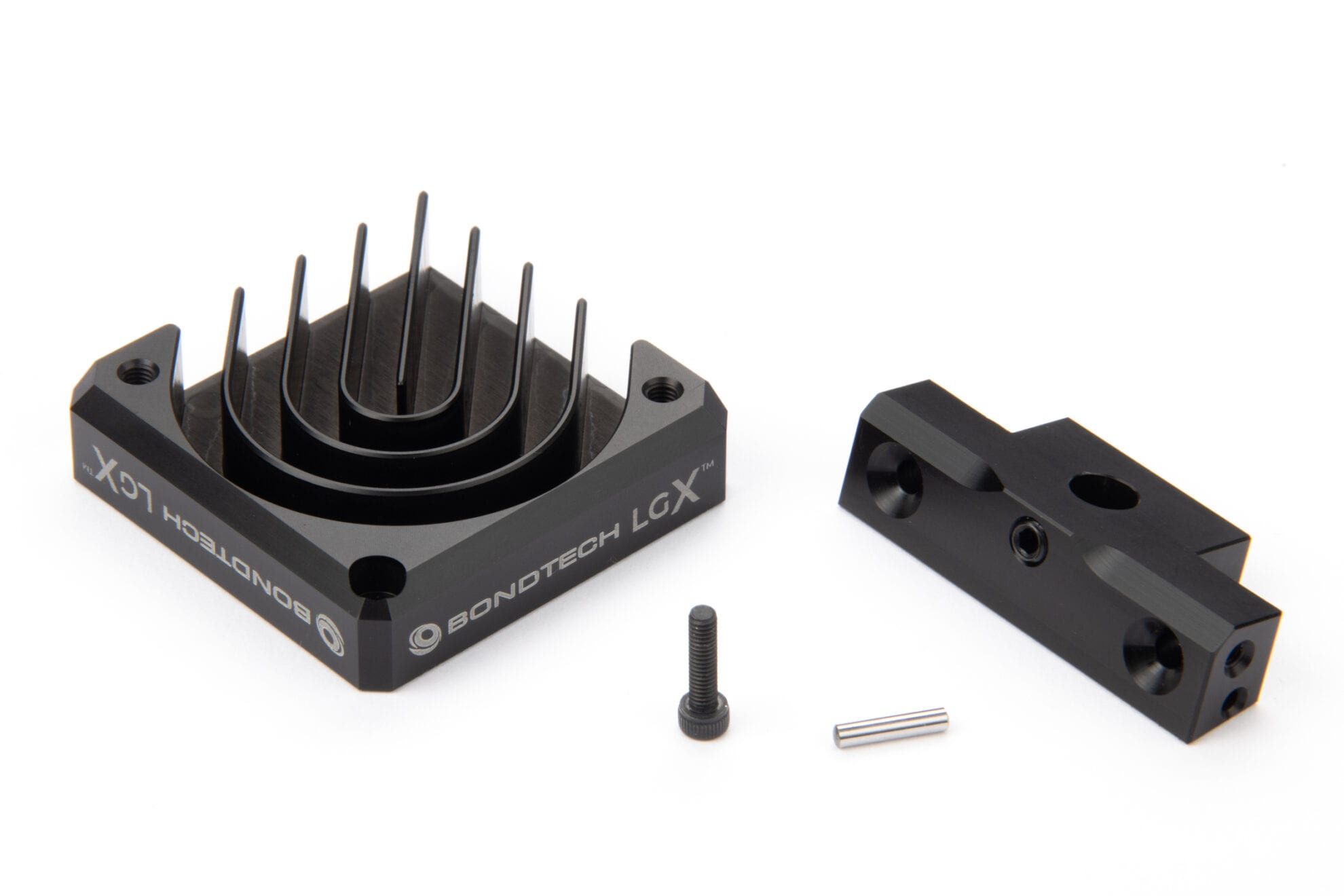

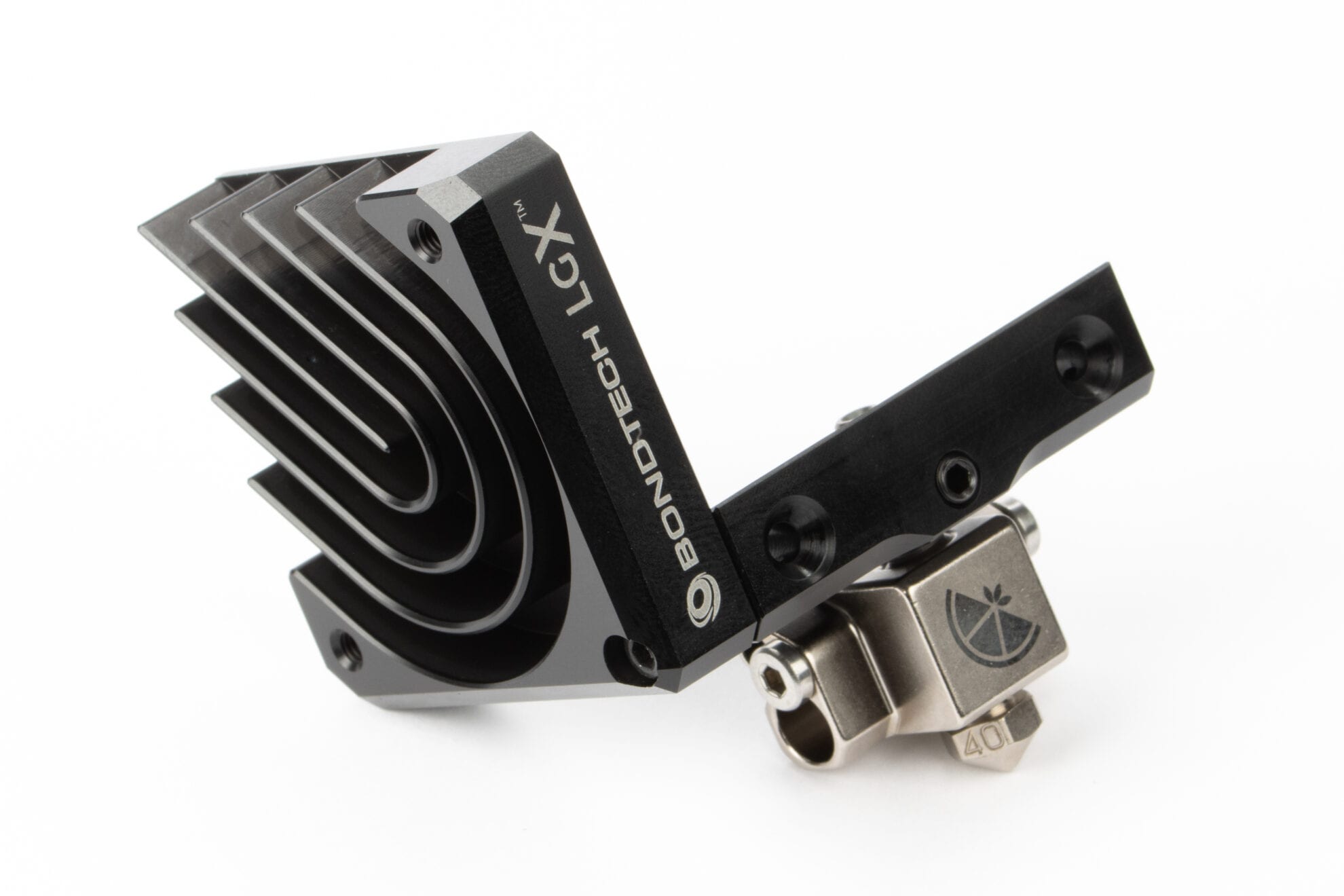

The LGX™ For Flexibles Set includes a reversible heat sink that can be installed on the left or right-hand side of the cold block. The heat sink also includes the hole pattern for attaching 40×40 fans.

Main Advantages

• Gives access to all available materials.
• Enables to print flexible and soft materials faster.
• It is small and light.
• Allows mounting in many different ways.



Specifications

LGX™ EXTRUDER

• e-steps value : 400 using 16 microsteps; 800 using 32 microsteps.
• Drive wheels : hardened steel;
• Materials compatibility : abrasive; rigid; semi-flexible; flexible; and soft.
• Mounting holes : M3
• Mounting patterns : bottom anterior (2 points); left (2 points), right (2 points), front (4 points), back (4 points)
• Holes on the sides of the LGX™ : 5 mm depth
• Holes on the bottom of the LGX™ : 12 mm depth
• retraction speed : 35 mm/s
• retraction distance (bowden) : ~5 mm (0.4 + tube length x 0.15)
• retraction distance (direct drive) for rigid materials : 0.4 mm
• retraction distance (direct drive) for soft materials : 3 mm
• Max environment operating temperature : 70°C
• LGX™ DD net weight : 218.6 g
• LGX™ B net weight : 224 g
• Package measurements : 80x103x73 mm
• Package weight : 269 g
• Download the LGX Technical Drawings .

LDO STEPPER MOTOR FOR BONDTECH LGX™

• PH-06AWJ connector
• 2 phases
• DC 5.5 V
• Max 1.0A/phase
  To use the LGX and run the stepper motor with currents between ~0.7 and ~0.9A:
  • set Vref between 0.70 and 0.90 using TMC stepper drivers;
  • set Vref between 0.28 and 0.36 for stock Pololu A4998 stepper drivers;
  • set Vref between 0.56 and 0.72 for Pololu A4998 stepper drivers on Creality.
• Class B motor, rated up to 130°C
  • Max recommended environment: 70°C
  • Max temperature at this environment temperature can go up to 130°C on account of the self-heating.
• Download the stepper motor Technical Data Sheet .

LGX™ FF SET

• Cold Block Material: Anodized Aluminum;
• Heat Sink Material: Anodized Aluminum;

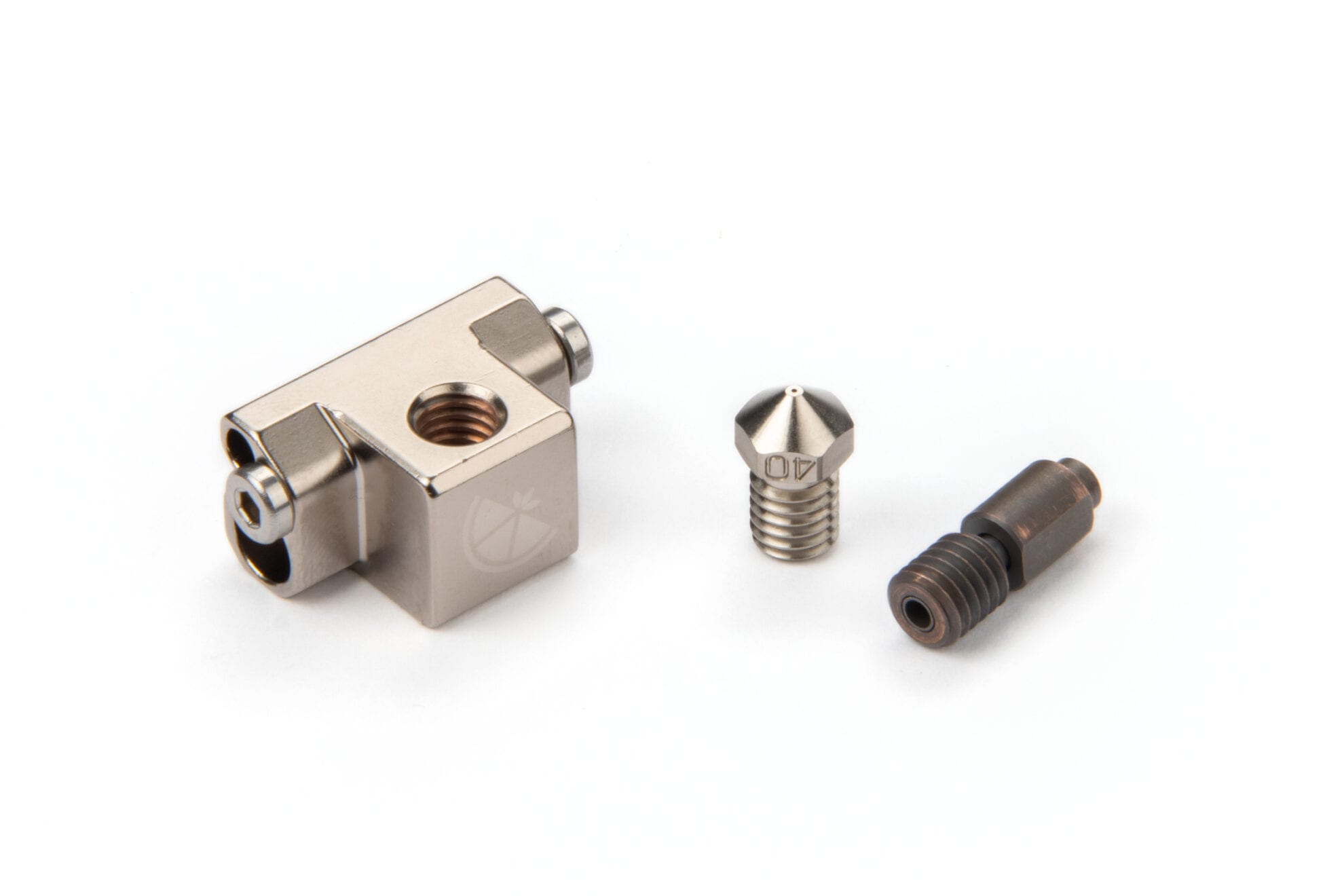

• Copperhead Hot Block materials: steel tube; copper body; nickel plating.

• Max operating temperature: 450°C

• LGX™ FF Set net weight: 55.5 g g
• Package measurements : 80x103x73 mm
• Package Weight : 96 g



Video Guides

IMPORTANT NOTICE:
*************************************************************************************************
There is a miss on this video guide that will be corrected soon. To use the Direct Drive Interface Plugs with Slice Engineering hotends it is recommended to use a PTFE tube between the extruder and the heat break. Info on how to install it will be posted as a new video. This information does not have an impact on using the LGX FF For Flexibles Set. Below is some useful additional information:

PFTE tube lengths:
Old Mosquito/Mosquito Magnum: 10 mm
New Mosquito/Mosquito Magnum: 11 mm
Copperhead screw mount: 30 mm
PTFE tube should be cut straight on both ends.
Slight chamfer inside is recommended, but not mandatory.
*************************************************************************************************

STEP Files

Click the links below to download STEP files with simplified geometries of each available setup.

• ;
• ;
• ;
• ;
• .
